Head Restraint Force

Head_Restraint_Force

Contact shells to extract forces on the head

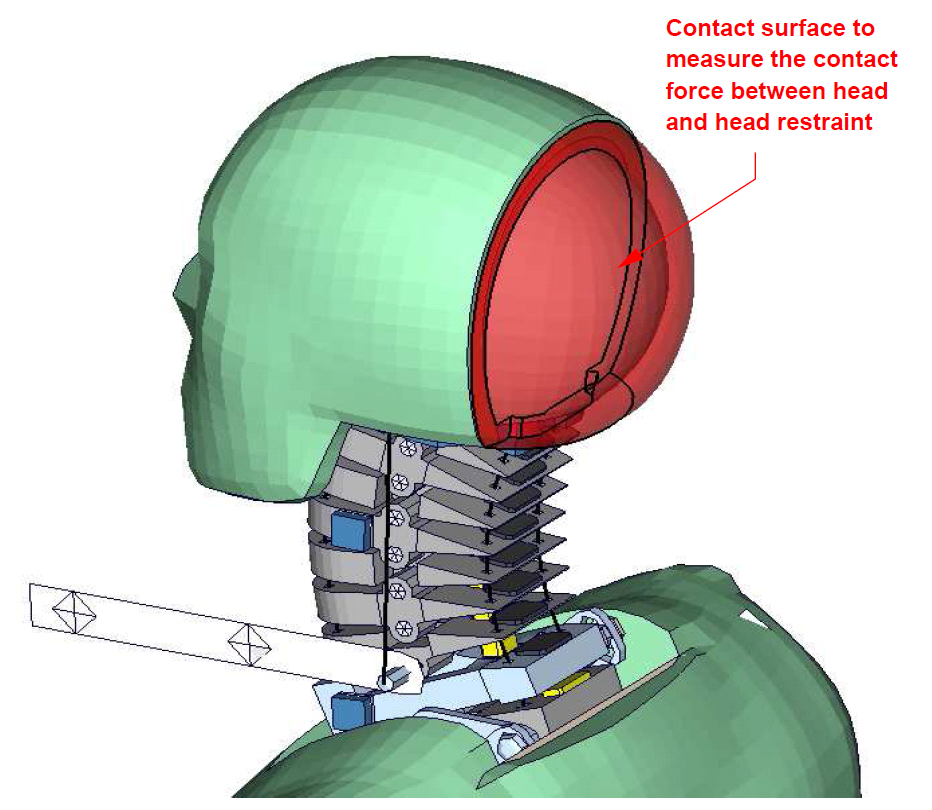

The figure shows the contact shells at the back of the head. A *CONTACT_FORCE_TRANSDUCER_PENALTY_ID is defined between this part and all other parts. This allows to extract the head contact forces from the RCFORC file. The table below gives details on the extraction of the force.



Item Contact ID
Label
Component
Force head to surroundings
1012 No Label
Resultant Force
