Sports Car Seat
Whiplash seat

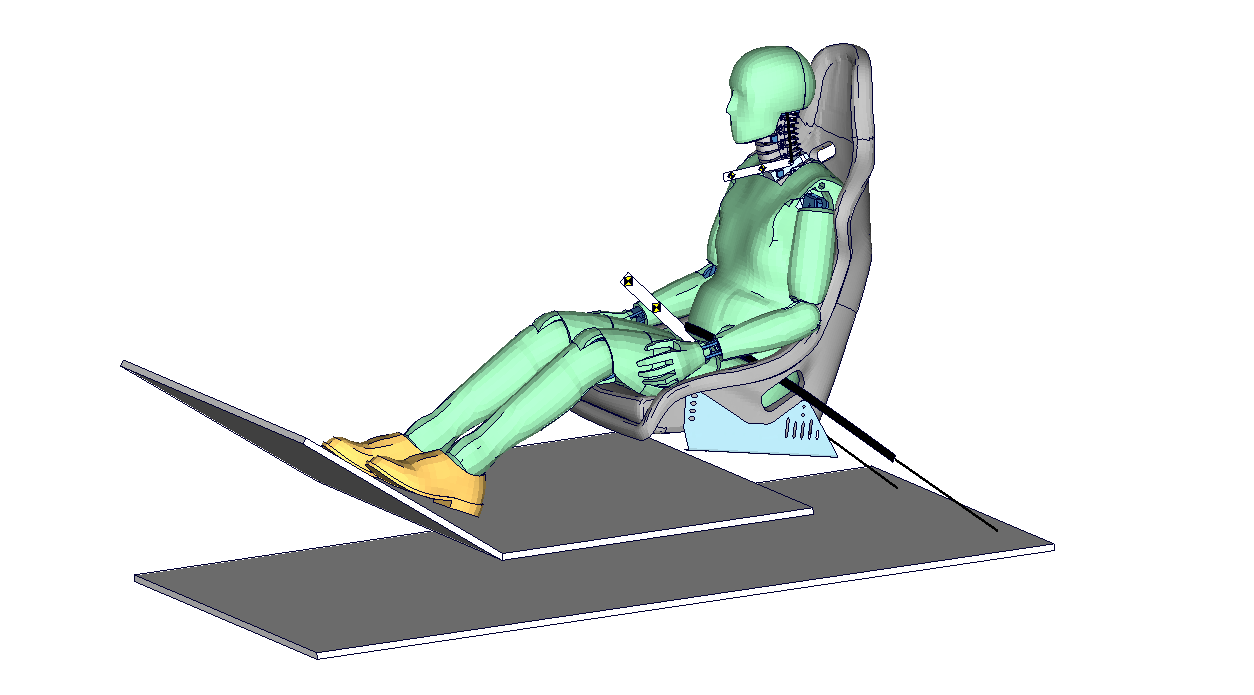

Due to the new pelvis stiffness and also to get smoother results of the BioRID for validation of the whole Dummy model, new tests are performed in a sports car seat. The used seat is depicted in the picture above.
| SRA16 pulse | 16 km/h plateau |
| IIWPG pulse | 16 km/h triangle |
Before the tests, the position of the dummy was measured very accurately.Additionally, the position of the arms in simulation is adjusted very accurately to the test position. The influence of the arm position has a major influence on the results of the neck load cells.
The pre-stress is used for the complete model including BioRID and Seat model.
In the following the results of the BioRID v3.9 are the red lines. The green lines are the results of the BioRID v3.8. All other curves are test data. All grey curves are a first BioRID and all blue curves are a second BioRID in the test.
