          Contact_Definition_

Parts used in contact definition



  • For the contact of the dummy model with the vehicle and the seat, an automatic node to surface or automatic surface to surface contact is proposed.

  • The usage of a single surface contact is not recommended. This might interfere with the contact definitions of the dummy model itself.

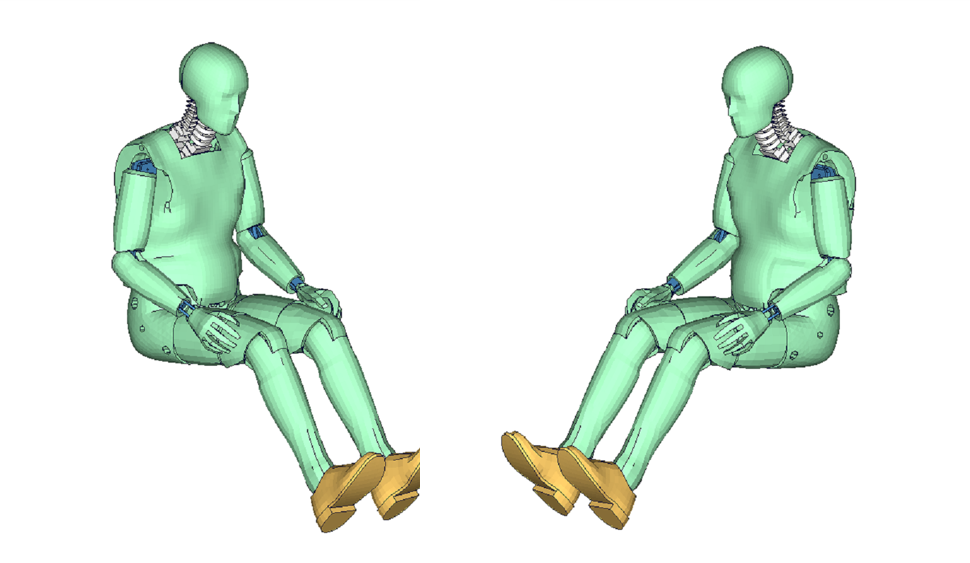

  • The figure above depicts parts proposed to be used in contact definition of dummy with vehicle and seat.




Item Part ID
Item Part ID
head contact shells front 5   upper leg right skin 366
head contact shells rear  6   knee right skin 370
vertebra null shells rear  218   foot null shells 378
vertebra null shells
 221   lower leg right skin  379
vertebra null shells
 222   shoe right  381
contact shell teflon plate on torso  277   upper arm left skin  408
contact shell teflon plate  278   lower arm left skin  409
torso outer contact shells  292   hand left skin  410
pelvis outer skin  304   null shells bones arm left  411
upper leg left skin  326   upper arm right skin  458
knee left skin  330   lower arm right skin  459
foot null shells  338   hand right skin  460
lower leg left skin  339   null shells bones arm right  461
shoe left  341   null shells on gaps of lower arms  490
