ES-2re Extension Forces
Force Transducer Contacts of Rib extensions

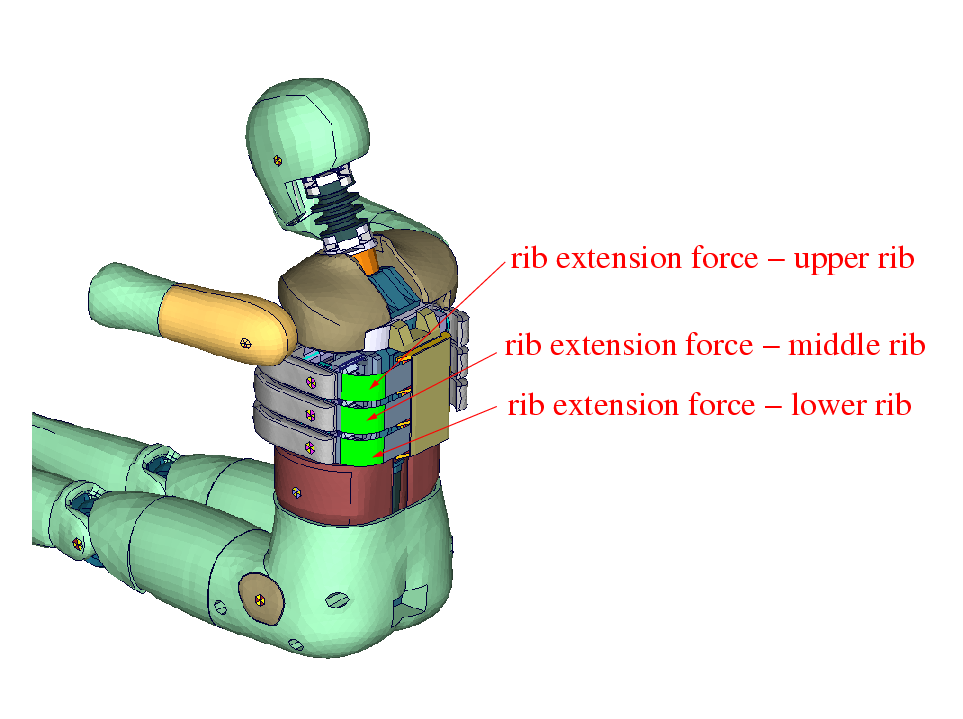

Three *CONTACT_FORCE_TRANSDUCER definitions are used in the model to measure impact forces on the rib extensions of the ES-2re model. The title option is applied to find the interface number in th RCFORC file.
Remark: Renumbering or adding further contact definitions in the run may change the numbering and thus has to be considered in post-processing.
| Item | Interface ID | Label | Component |
|---|---|---|---|
| Extension force upper rib Extension force middle rib Extension force lower rib |
Interface 6 Interface 7 Interface 8 |
RIB EXTENSION FORCE - UPPER RIB RIB EXTENSION FORCE - MIDDLE RIB RIB EXTENSION FORCE - LOWER RIB |
magnitude magnitude magnitude |
| Resultant extension force | Interfaces 6+7+8 | --- | magnitude |
