Neck Load Cells
Models of lower and upper neck load cells

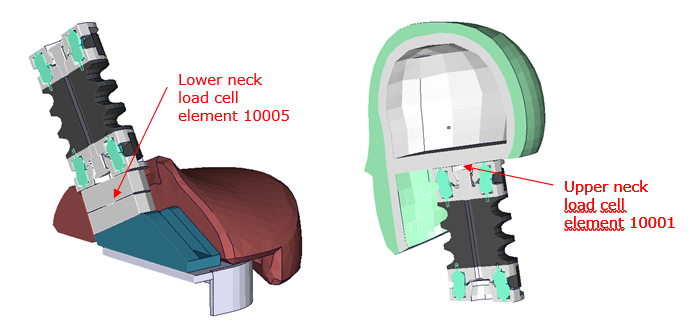

The figure shows the location of the upper and lower neck load cells. Both are modelled as discrete beams. The table below gives details on the extraction of the loads:
| Item | Beam ID | Label | Component |
|---|---|---|---|
| Upper neck force y - direction |
10001 |
NECKUP00ER |
Force shear-S |
| Upper neck moment About x-direction |
10001 |
NECKUP00ER |
Moment torsion |
| Lower neck force y - direction |
10005 |
NECKLO00ER |
Force shear-S |
| Lower neck moment About x-direction |
10005 |
NECKLO00ER |
Moment torsion |
