T12 Load Cell (Lumbar Spine)

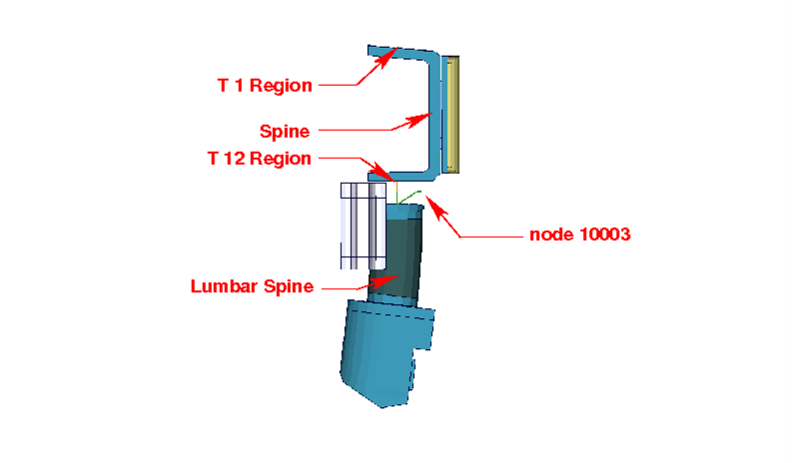

Overview of spine to sacrum with T12 load cell
The figure above shows the T12 area. The upper rigid beam is merged to the spine and the lower rigid beam is merged to the upper lumbar spine adaptor plate. A discrete beam is located between the rigid beams to determine the T12 forces and moments. The local directions are shown in the table below:
| Item | Beam ID | Label | Component |
|---|---|---|---|
| T12 force y - direction |
10006 |
SPIN1200ER |
Force shear-S |
| T12 moment About x-direction |
10006 |
SPIN1200ER |
Moment torsion |
| T12 moment About z-direction |
10006 |
SPIN1200ER |
Moment moment-t |
