Abdomen Test

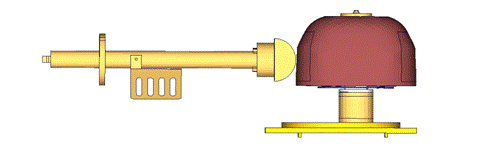

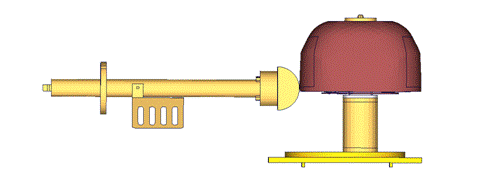

Test setup for Abdomen test
The test setup for the abdomen test is shown in the figure above. The Abdomen assembly is impacted by a pendulum at 2 different heights with 3 different velocities and 3 different abdomen assembly orientations each. The different abdomen assembly orientations are achieved by rotating the abdomen assembly by 30 degrees on either side of the adaptor axis.

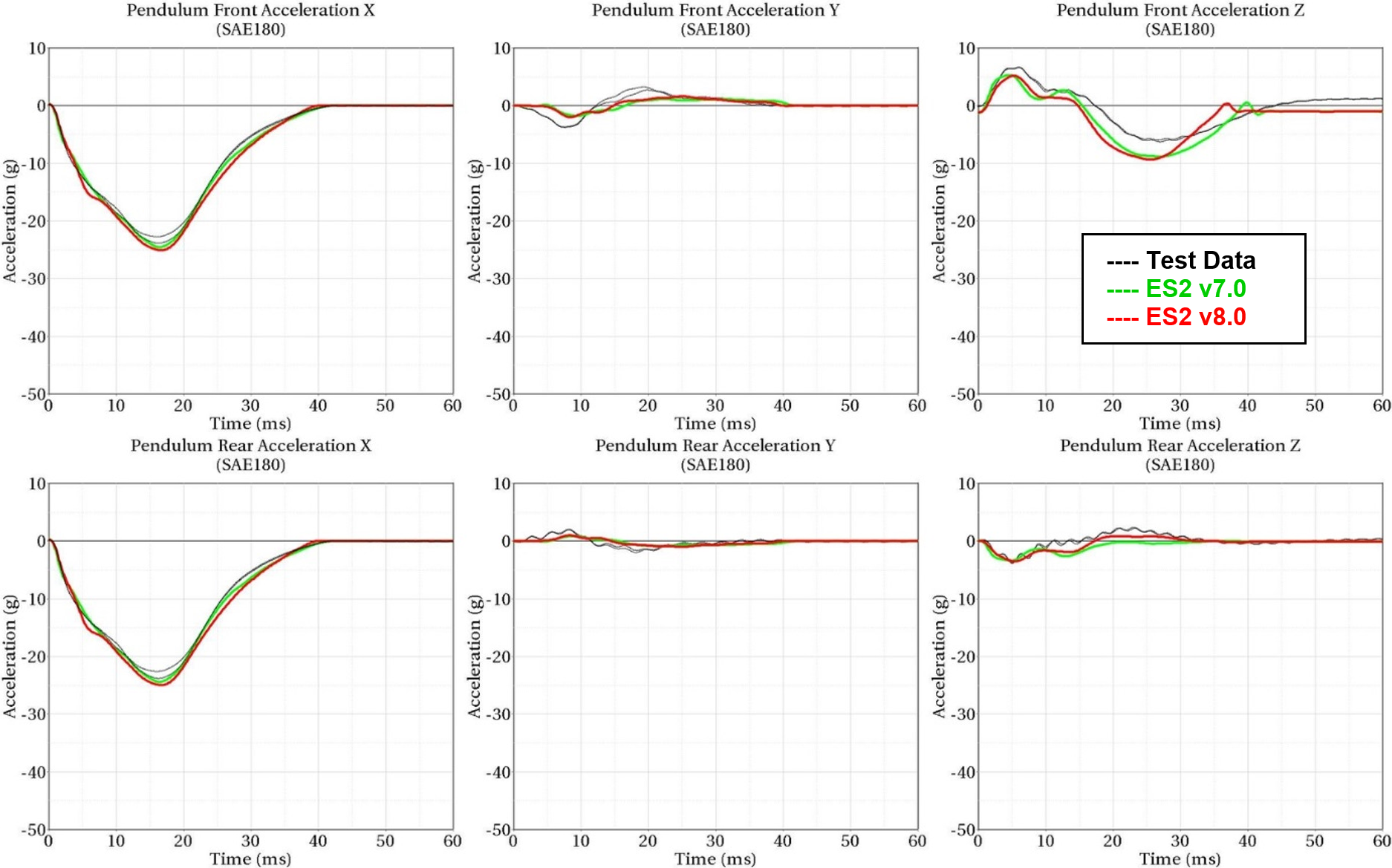

Results for 90° orientation, middle impact, low velocity


Results for 90° orientation, middle impact, medium velocity


Results for 90° orientation, middle impact, high velocity


Results for 60° orientation, middle impact, low velocity


Results for 60° orientation, middle impact, medium velocity


Results for 60° orientation, middle impact, high velocity


Results for 120° orientation, middle impact, low velocity


Results for 120° orientation, middle impact, medium velocity


Results for 120° orientation, middle impact, high velocity


Results for 90° orientation, top impact, low velocity


Results for 90° orientation, top impact, medium velocity


Results for 90° orientation, top impact, high velocity


Results for 60° orientation, top impact, low velocity


Results for 60° orientation, top impact, medium velocity


Results for 60° orientation, top impact, high velocity


Results for 120° orientation, top impact, low velocity


Results for 120° orientation, top impact, medium velocity


Results for 120° orientation, top impact, high velocity
