Abdomen Certification

Boundaries:

• Pendulum impacting the abdomen
• Speeds : 4.0 m/s
• Mass : 24.4 Kg
• Arm in 90 degree position
• A wooden block is mounted in front of the pendulum
• ES-2 dummy model used

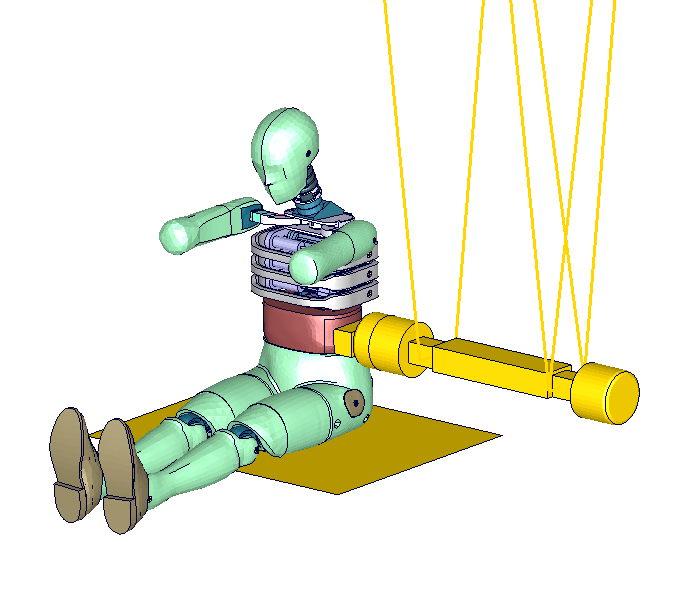

ES-2 abdomen certification test setup
