Barrier D4

Configuration D4: Door barrier

Boundaries:

•    Rigid barrier
•    Impact speed: High velocity
•    Arms in 40 degree position
•    Curb edge
•    Orthogonal impact

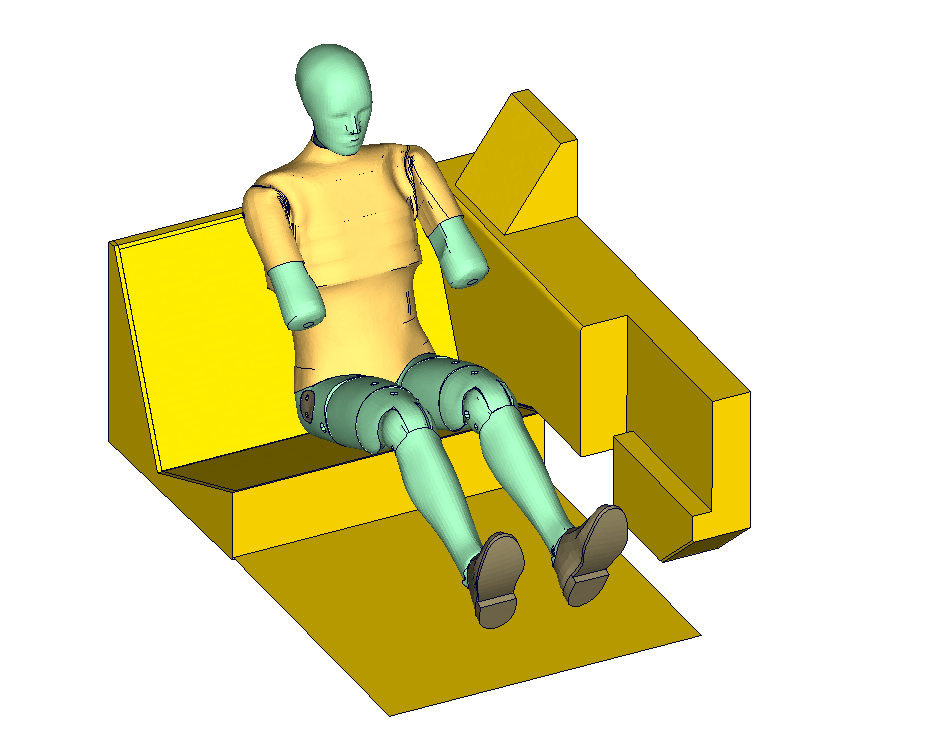

•    ES-2re dummy model used D4_Barrier_Setup

D4 door barrier test setup

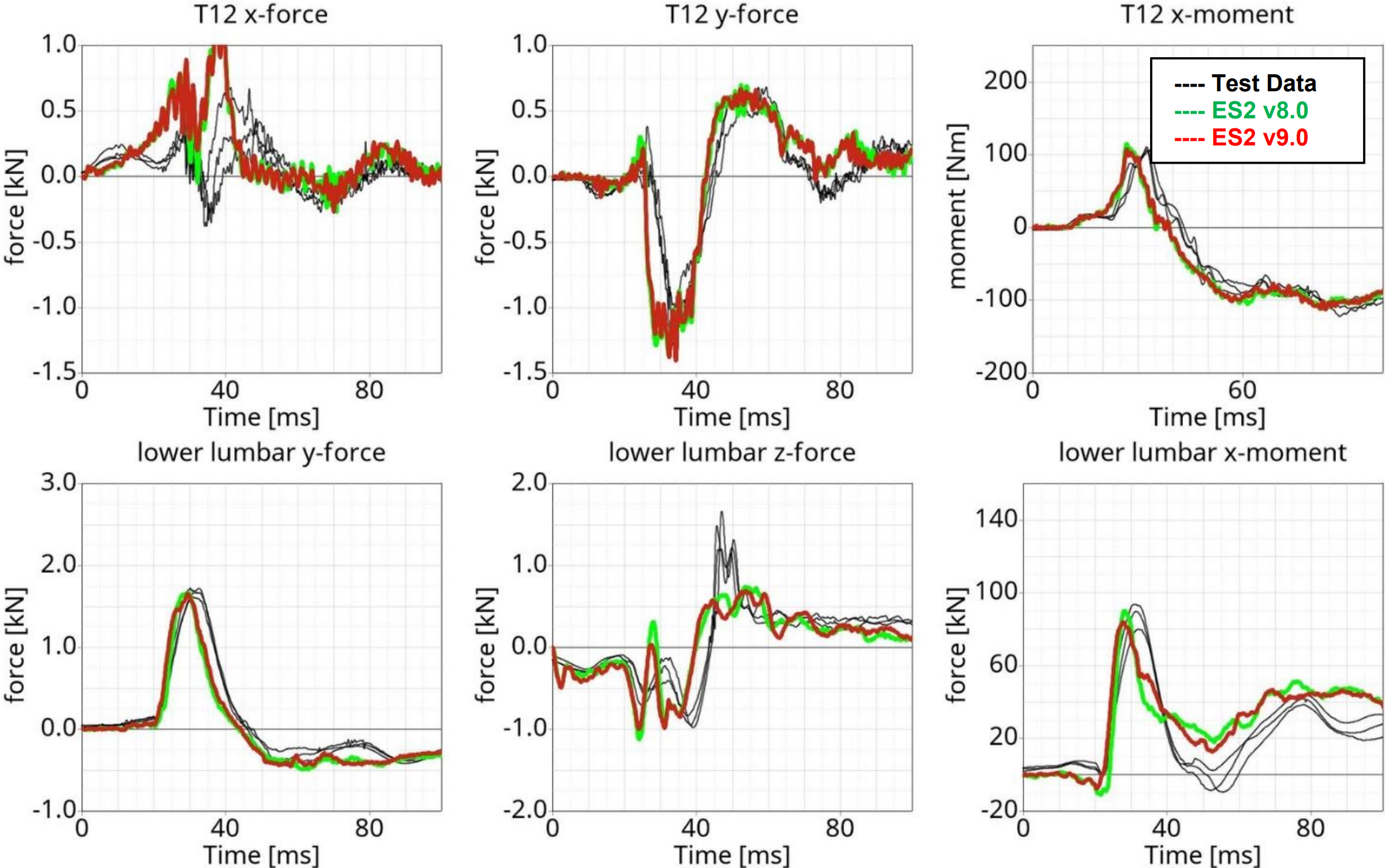

Results at high velocity impact:

D4_Barrier_07
