Pendulum Test - 45° (w/o Arm and Jacket)
Additional Test of ES-2re - Pendulum at 45 Degrees, without arm and jacket
Boundaries:
- Pendulum with 45 degree
- Speeds: Low and high velocity
- Mass: 24.1 Kg
- No jacket and the left arm is not attached
- An ensolite foam is mounted in front of the pendulum

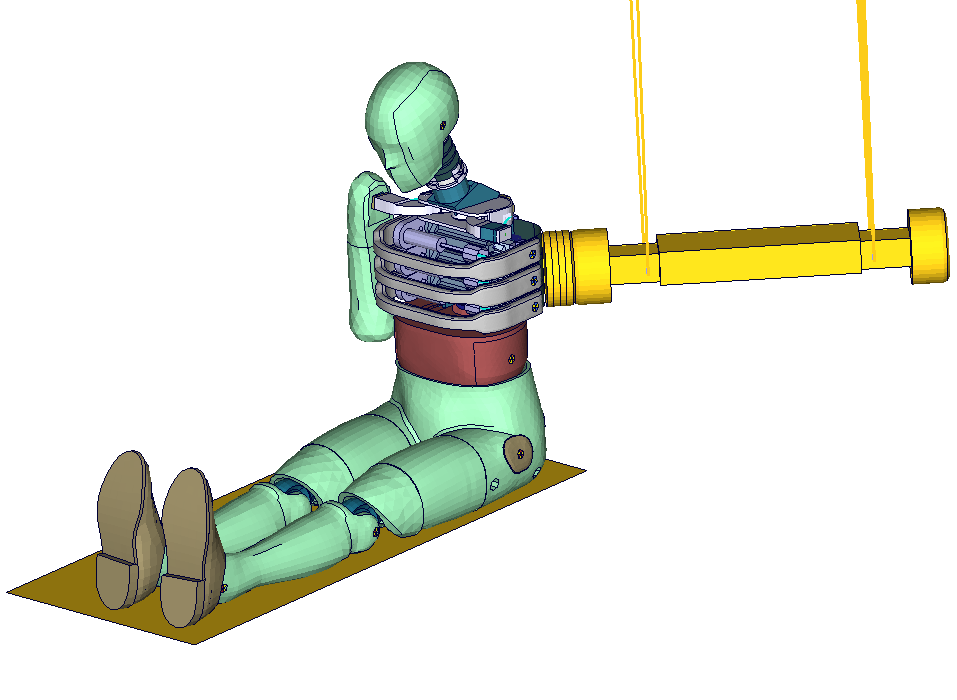

Pendulum impacting the rib extensions at 45 degrees; without arm and jacket
Results low velocity :

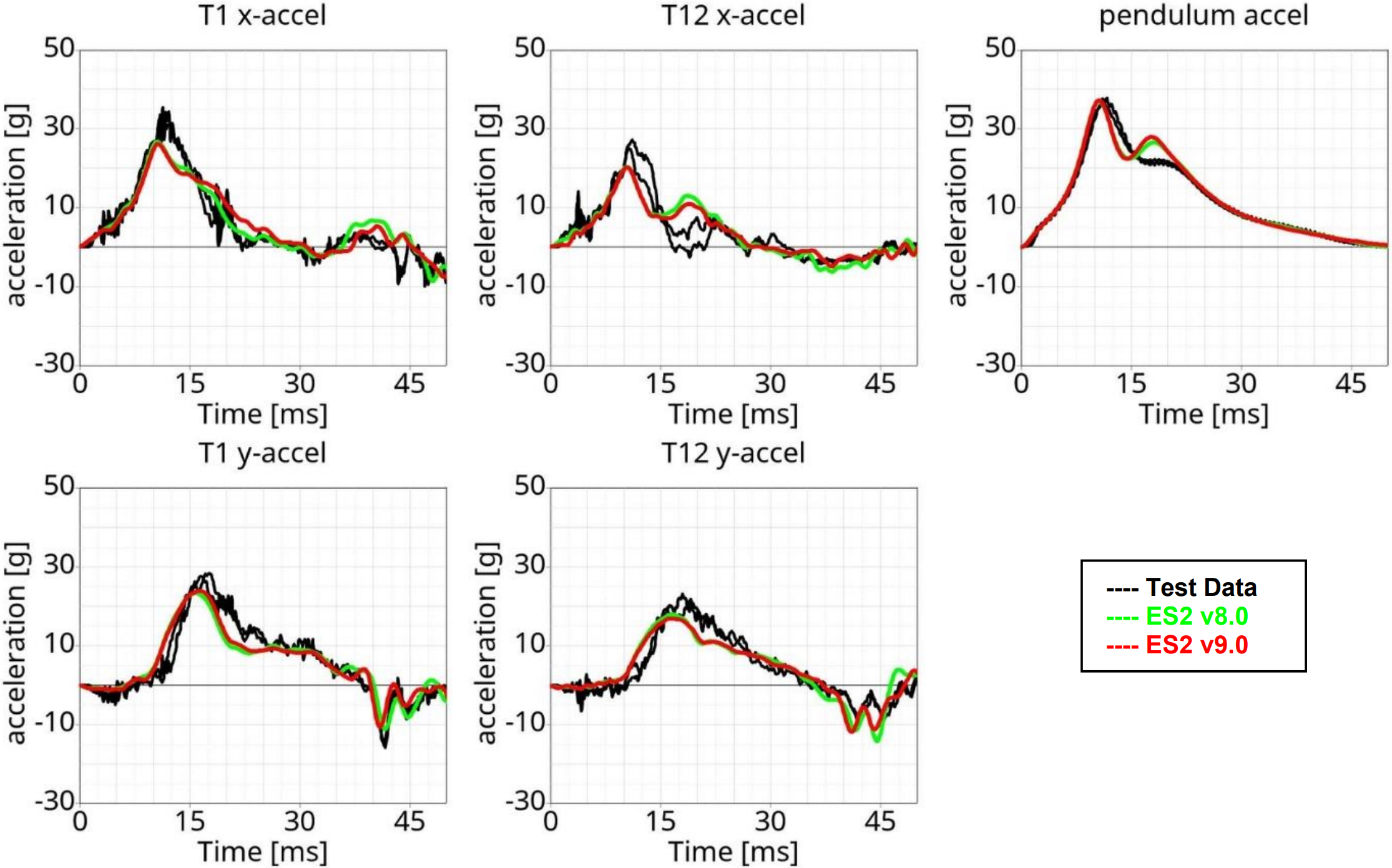

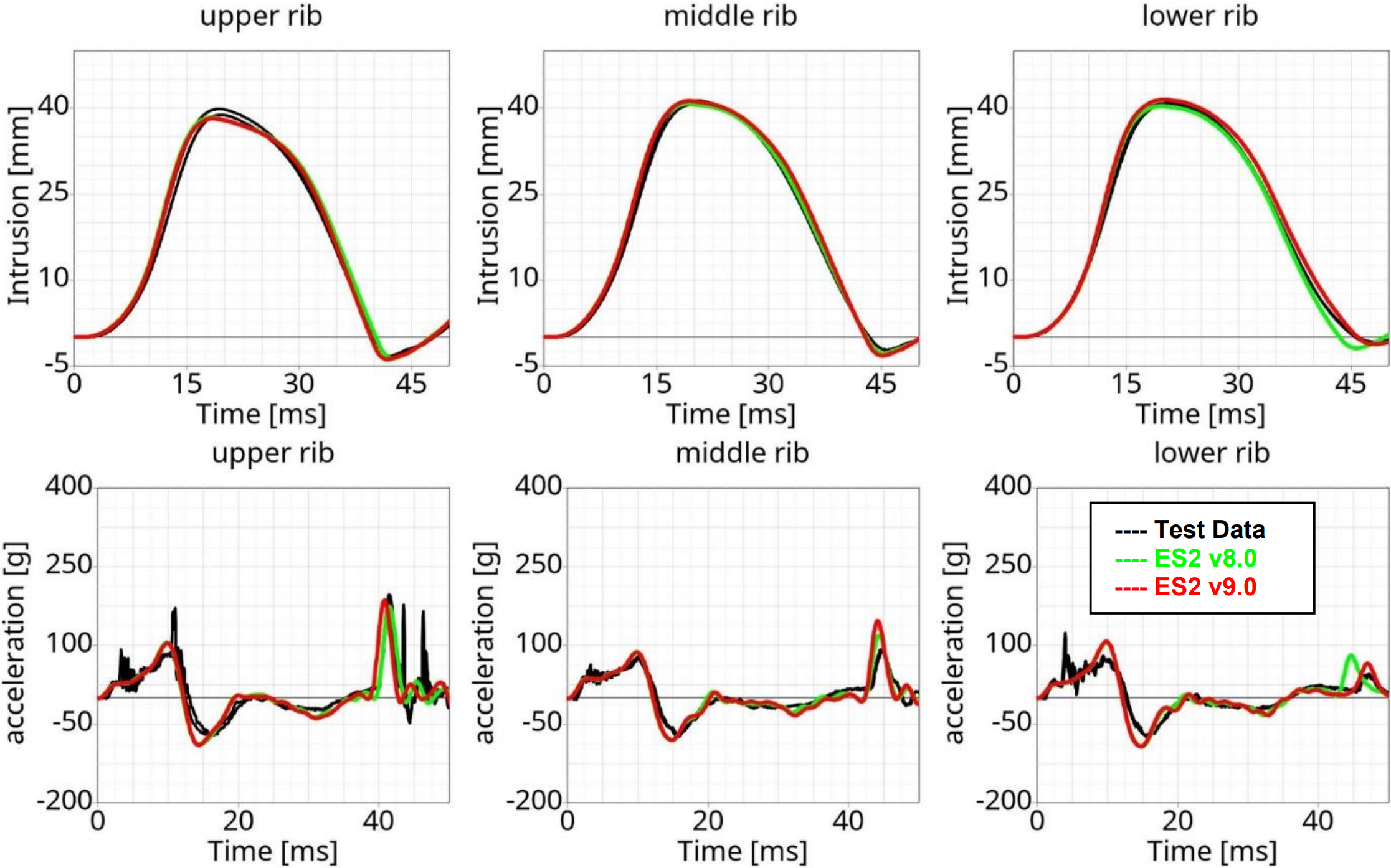

Results high velocity :
