Pelvis Acceleration

Pelvis acceleration

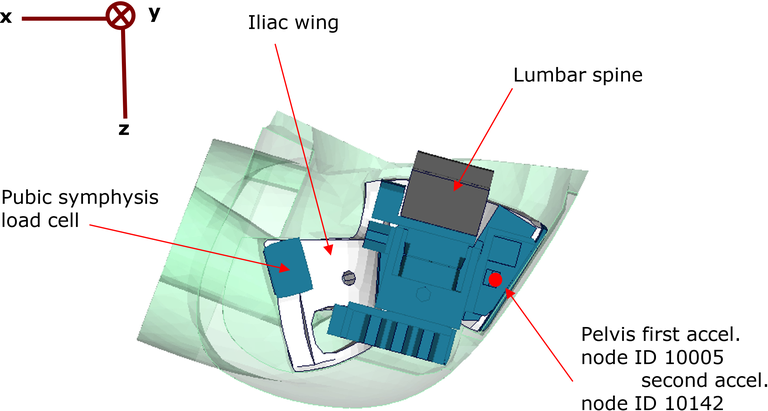

Node to extract pelvis acceleration


In the figure above, a plate cut through the pelvis along the z-x-plane is shown. The pelvis accelerometer is located at the back of the sacrum block. The results of the node 10005 are printed in the NODOUT file in the local coordinate system which is shown in the figure. Node 10142 is for global accelerations.



Item Node ID Label Component
Pelvis 10005 PELV0000WSAC Local x-, y-, z-accelerations
Pelvis global 10142 PELV00GBWSAC Global x-, y-, z-accelerations
