Rib Accelerations
The WorldSID 50th model is equipped with twelve rib accelerometers. On each single rib, one accelerometer is mounted on the impact side and one on the opposite side.

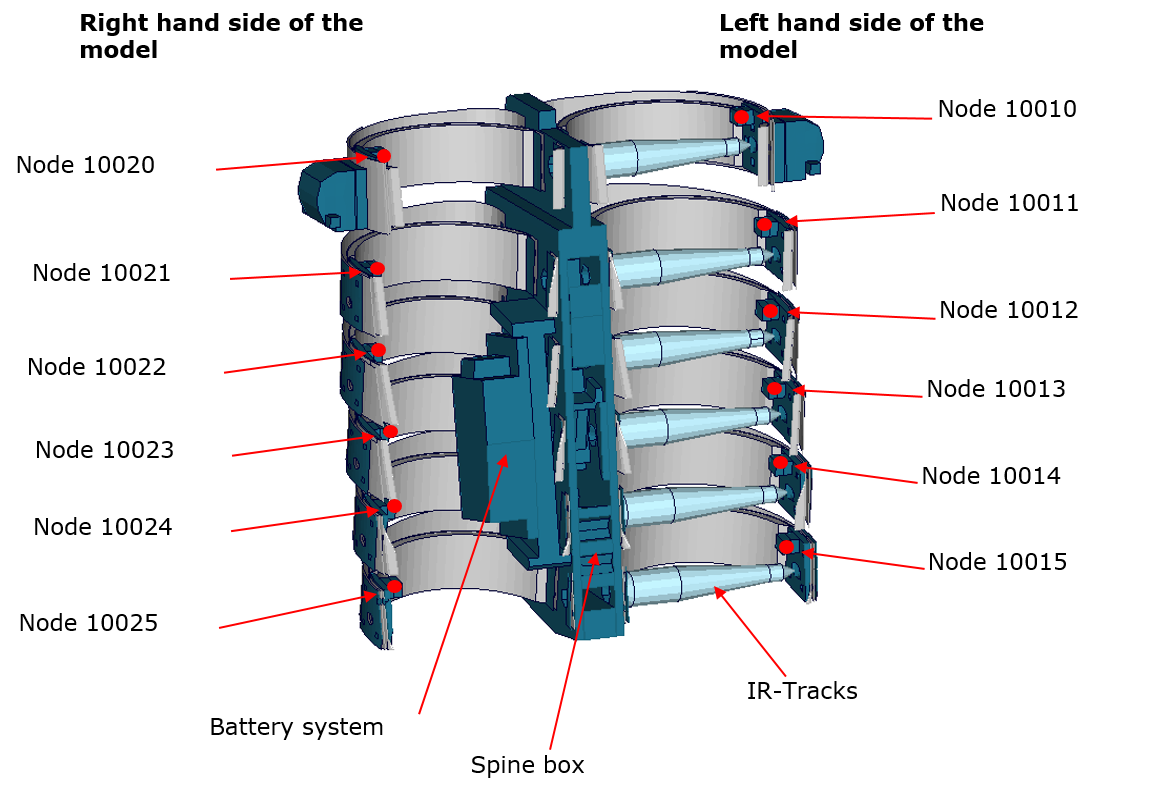

Cut through upper torso and position of rib accelerometer nodes
The nodal results are printed in the NODOUT file in the local coordinate systems of the accelerometers. On the impact side (left hand side for the left handed driver model) the nodes are:
| Item | Node ID | Label | Component |
|---|---|---|---|
| Shoulder Rib | 10010 | SHRILE00WSAC | Local x-, y-,z-accelerations |
| 1.Thorax Rib | 10011 | TRRILE01WSAC | Local x-, y-,z-accelerations |
| 2.Thorax Rib | 10012 | TRRILE02WSAC | Local x-, y-,z-accelerations |
| 3.Thorax Rib | 10013 | TRRILE03WSAC | Local x-, y-,z-accelerations |
| 1.Abdomen Rib | 10014 | ABRILE01WSAC | Local x-, y-,z-accelerations |
| 2.Abdomen Rib | 10015 | ABRILE02WSAC | Local x-, y-,z-accelerations |
On the reverse side of impact (right hand side for the left handed driver model) the accelerometer nodes are:
| Item | Node ID | Label | Component |
|---|---|---|---|
| Shoulder Rib | 10020 | SHRIRI00WSAC | Local x-, y-,z-accelerations |
| 1.Thorax Rib | 10021 | TRRIRI01WSAC | Local x-, y-,z-accelerations |
| 2.Thorax Rib | 10022 | TRRIRI02WSAC | Local x-, y-,z-accelerations |
| 3.Thorax Rib | 10023 | TRRIRI03WSAC | Local x-, y-,z-accelerations |
| 1.Abdomen Rib | 10024 | ABRIRI01WSAC | Local x-, y-,z-accelerations |
| 2.Abdomen Rib | 10025 | ABRIRI02WSAC | Local x-, y-,z-accelerations |
