Pelvis Force

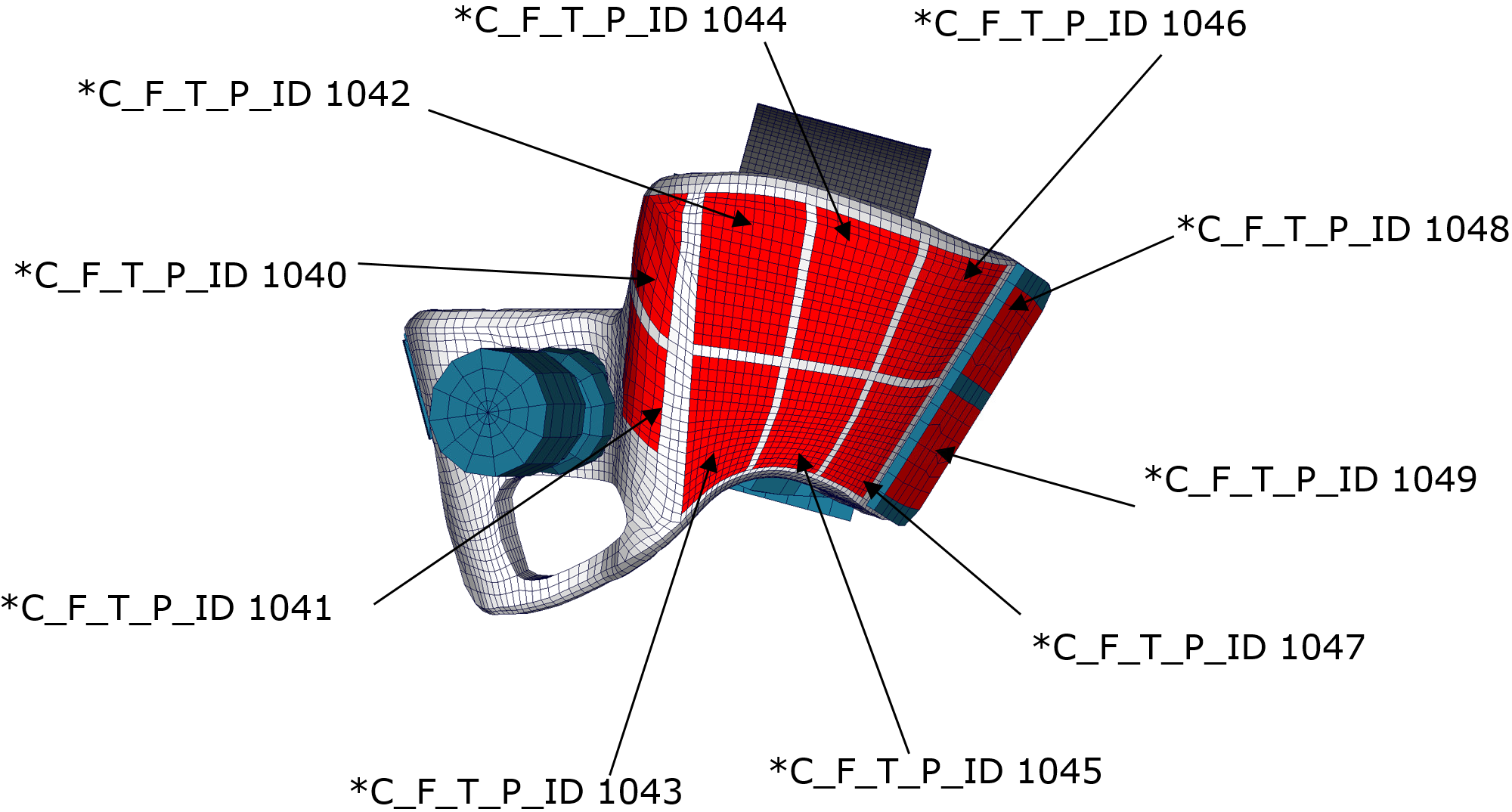

In WorldSID models beginning with version 7.0, it is possible to measure both sides of pelvis forces with more details. The pelvis bone is separated into small parts for evaluations over *CONTACT_FORCE_TRANSDUCER_PENALTY_ID. The parts of the left iliac wing are shown in the following figure.




Item C_F_T_P_ID Label Available components
Pelvis force 1040 pelvis bone force left - upper front global contact force x-, y-, z-resultant
Pelvis force 1041 pelvis bone force left - lower front global contact force x-, y-, z-resultant
Pelvis force 1042 pelvis bone force left - upper side forward global contact force x-, y-, z-resultant
Pelvis force 1043 pelvis bone force left - lower side forward global contact force x-, y-, z-resultant
Pelvis force 1044 pelvis bone force left - upper side middle global contact force x-, y-, z-resultant
Pelvis force 1045 pelvis bone force left - lower side middle global contact force x-, y-, z-resultant
Pelvis force 1046 pelvis bone force left - upper side rear global contact force x-, y-, z-resultant
Pelvis force 1047 pelvis bone force left - lower side rear global contact force x-, y-, z-resultant
Pelvis force 1048 pelvis bone force left - connection plate - upper global contact force x-, y-, z-resultant
Pelvis force 1049 pelvis bone force left - connection plate - lower global contact force x-, y-, z-resultant



The small parts of right side and *C_FT_P_ID are shown in the following figure.




Item C_F_T_P_ID Label Available components
Pelvis force 1060 pelvis bone force right - upper front global contact force x-, y-, z-resultant
Pelvis force 1061 pelvis bone force right - lower front global contact force x-, y-, z-resultant
Pelvis force 1062 pelvis bone force right - upper side forward global contact force x-, y-, z-resultant
Pelvis force 1063 pelvis bone force right - lower side forward global contact force x-, y-, z-resultant
Pelvis force 1064 pelvis bone force right - upper side middle global contact force x-, y-, z-resultant
Pelvis force 1065 pelvis bone force right - lower side middle global contact force x-, y-, z-resultant
Pelvis force 1066 pelvis bone force right - upper side rear global contact force x-, y-, z-resultant
Pelvis force 1067 pelvis bone force right - lower side rear global contact force x-, y-, z-resultant
Pelvis force 1068 pelvis bone force right - connection plate - upper global contact force x-, y-, z-resultant
Pelvis force 1069 pelvis bone force right - connection plate - lower global contact force x-, y-, z-resultant
