Rib Deflections 1D (up to hardware SBL E)
In the WorldSID model, it is possible to measure deflections and also rotations of some parts. Therefore discrete elements, which have no stiffness, are used. The elements are only used for the purpose of measurement and do not influence the results of the model. The output of these elements is included in the DEFORC file.
From the hardware SBL E1 the WorldSID is equipped with the 2D IR-TRACCs, i.e. the deflection and the rotation of the rib is measured. From LS-DYNA WorldSID v5.0 the model offers the 2D IR-TRACCs measurement devices. From LS-DYNA WorldSID v7.0 model 1D IR-TRACCs are available again. LHD and RHD have different discrete elements which are used to measure the deflection and rotation of the Ribs.

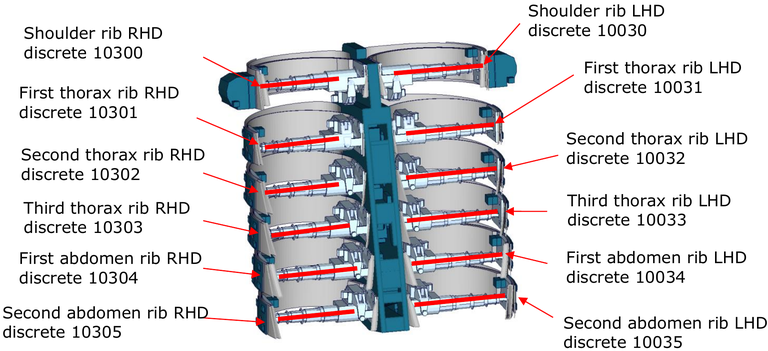

Cut through upper torso and location of rib deflection measurement springs (up to hardware SBL E)
| Item | Discrete-ID | Label | Available Components |
|---|---|---|---|
| Shoulder rib LHD | 10030 | SH1DLE00WSDS0 | change in length 1D |
| 1. Thorax rib LHD | 10031 | TR1DLE01WSDS0 | change in length 1D |
| 2. Thorax rib LHD | 10032 | TR1DLE02WSDS0 | change in length 1D |
| 3. Thorax rib LHD | 10033 | TR1DLE03WSDS0 | change in length 1D |
| 1. Abdomen rib LHD | 10034 | AB1DLE01WSDS0 | change in length 1D |
| 2. Abdomen rib LHD | 10035 | AB1DLE02WSDS0 | change in length 1D |
| Shoulder rib RHD | 10300 | SH1DRI00WSDS0 | change in length 1D |
| 1. Thorax rib RHD | 10301 | TR1DRI01WSDS0 | change in length 1D |
| 2. Thorax rib RHD | 10302 | TR1DRI02WSDS0 | change in length 1D |
| 3. Thorax rib RHD | 10303 | TR1DRI03WSDS0 | change in length 1D |
| 1. Abdomen rib RHD | 10304 | AB1DRI01WSDS0 | change in length 1D |
| 2. Abdomen rib RHD | 10305 | AB1DLE02WSDS0 | change in length 1D |
