Femoral Load Cells
The upper legs of the WorldSID are equipped with four load cells. At the neck of the left and right hand side femur, and in the middle of the left and right hand side femur.
| Item | Beam ID | Label | Channels in physical dummy |
|---|---|---|---|
| Femoral Neck Load Cell (left hand side) | 10008 | FEACLE00WS | Three-channel load cell |
| Femoral Neck Load Cell (right hand side) | 10009 | FEACRI00WS | Three-channel load cell |
| Femur Load Cell (left hand side) | 10010 | FEMRLE00WS | Six-channel load cell |
| Femur Load Cell (right hand side) | 10011 | FEMRRI00WS | Six-channel load cell |

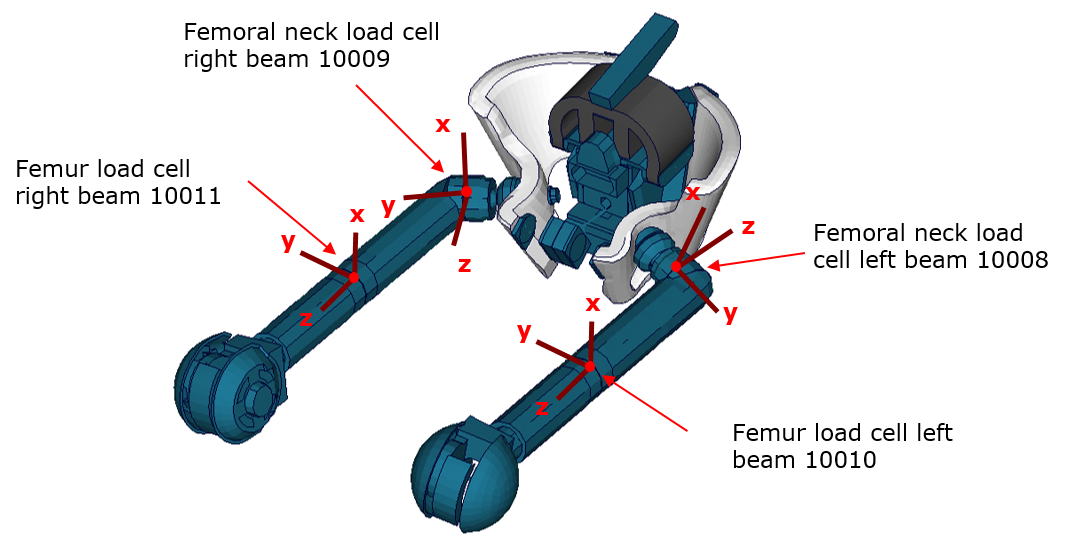

The results of the load cells can be extracted as described in the table above. The exact location of the load cells is shown in the figure below
Upper and lower femur load cells
