Knee Load Cells

The knee load cells can be used to determine the contact times. The load cells in the hardware are only one channel load cells.

Item Beam ID Label Channels in physical dummy
Outboard Knee Load Cell left 10012 KNEELEOUWS One-channel load cell
Outboard Knee Load Cell right 10013 KNEERIOUWS One-channel load cell
Inboard Knee Load Cell left 10014 KNEELEINWS One-channel load cell
Inboard Knee Load Cell right 10015 KNEERIINWS One-channel load cell

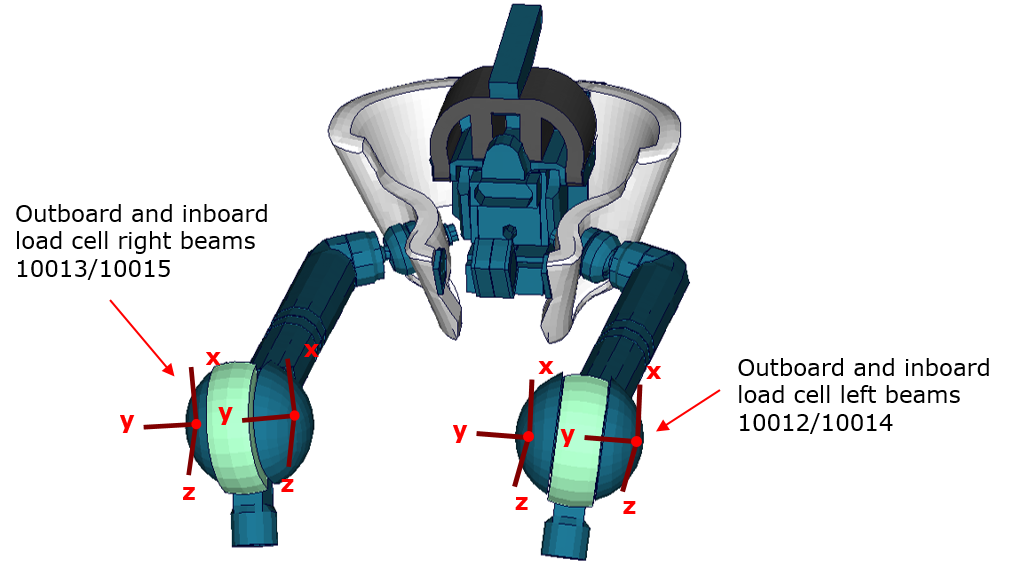

Knee_LoadCell

Knee load cell beams
