Sacro-Iliac Load Cells

The sacro-iliac load cells are positioned on the left and right hand side of the sacrum block. They are used to measure the forces and moments which come from the pelvis bones into the sacrum block. The load cells are shown in the figure below.

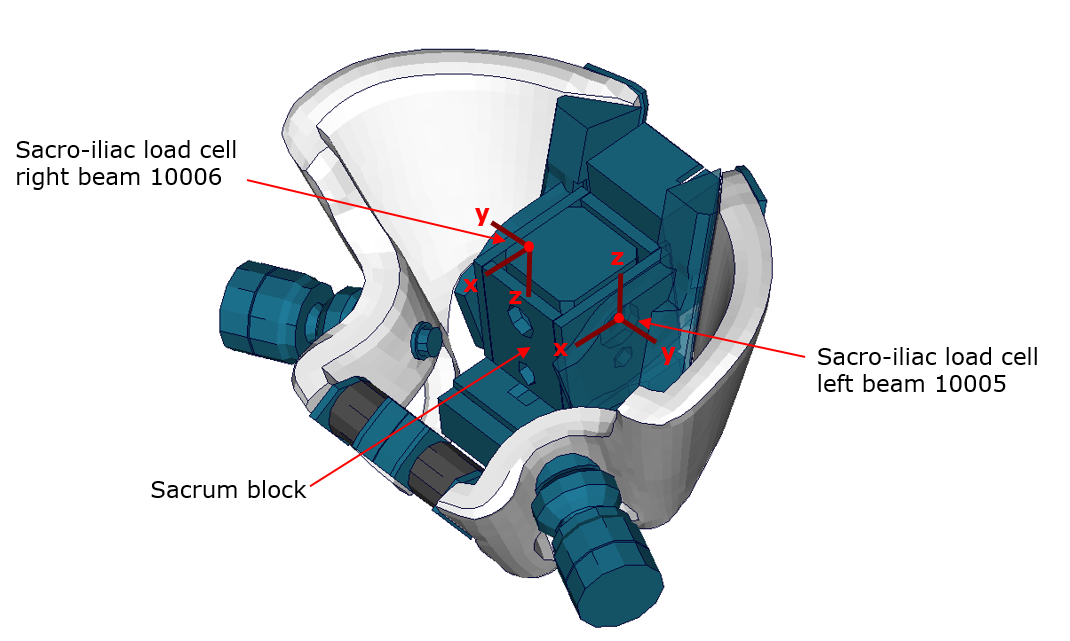

SacroIliac_LoadCell

Sacro-iliac load cells, left and right hand side


Item Beam ID Label Channels in physical dummy
Sacro-Iliac Load Cell (left hand side) 10005 SACRLE00WS Six-channel load cell
Sacro-Iliac Load Cell (right hand side) 10006 SACRRI00WS Six-channel load cell


The sacro-iliac load cells are six-channel load cells. This means that the forces and moments in each direction of axis can be evaluated in the hardware.
