Arm joint

In order to validate the rotation behavior of the arm joint of WorldSID 50th, there are type of half arm pendulum tests: no additional force on arm joint, different additional force on arm joint.

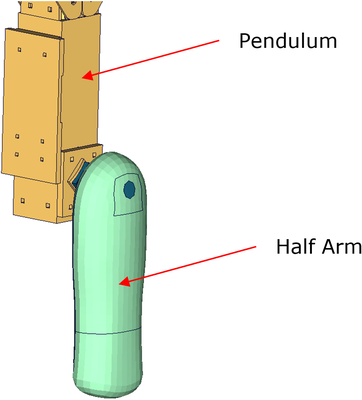

No additional force on arm joint:

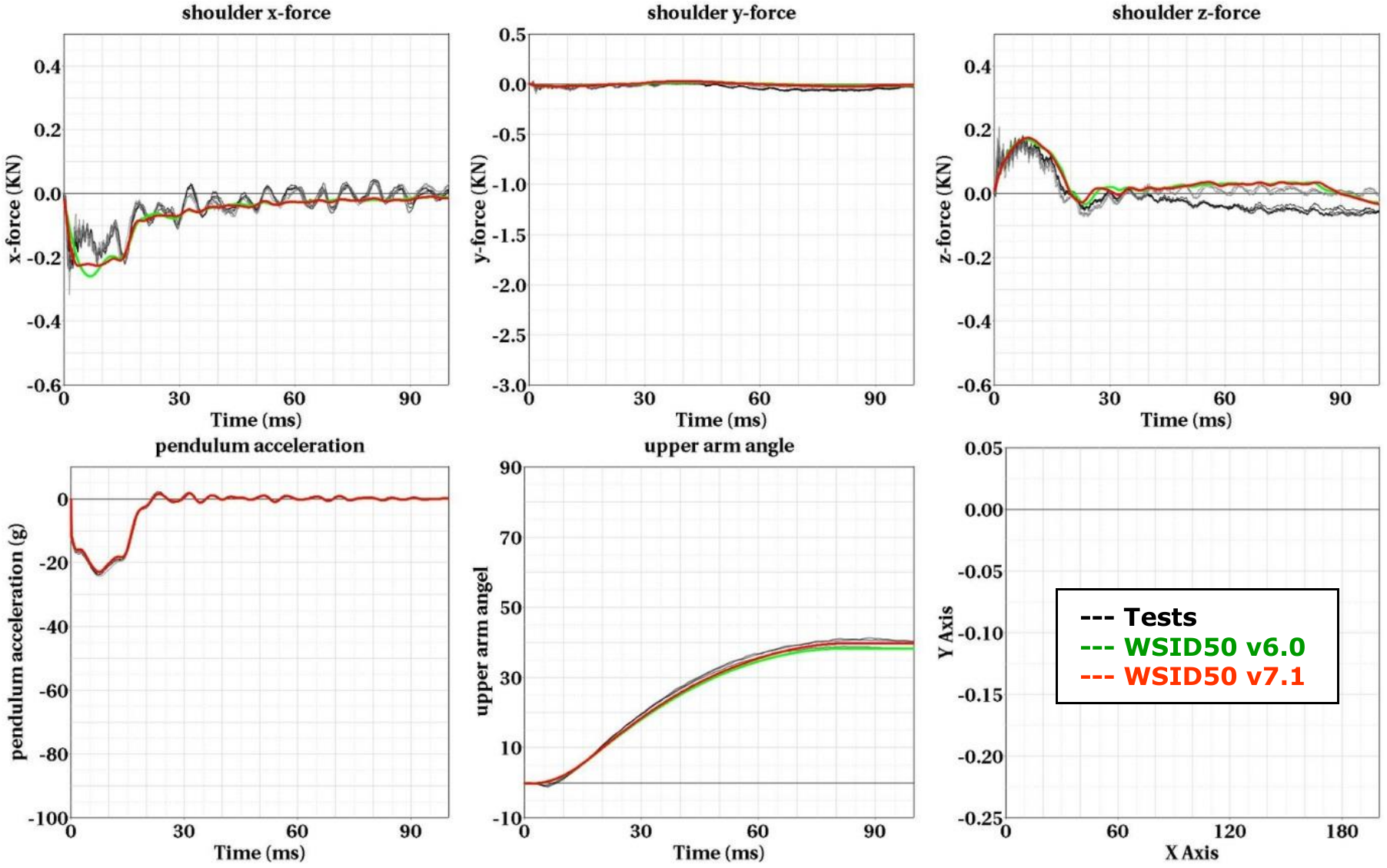

Results - no additional force on arm joint, low velocity

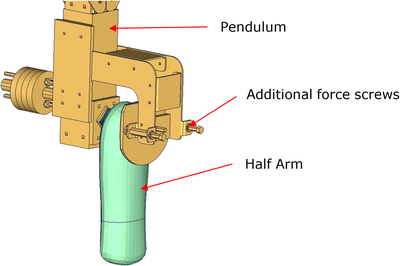

Additional force on arm joint:

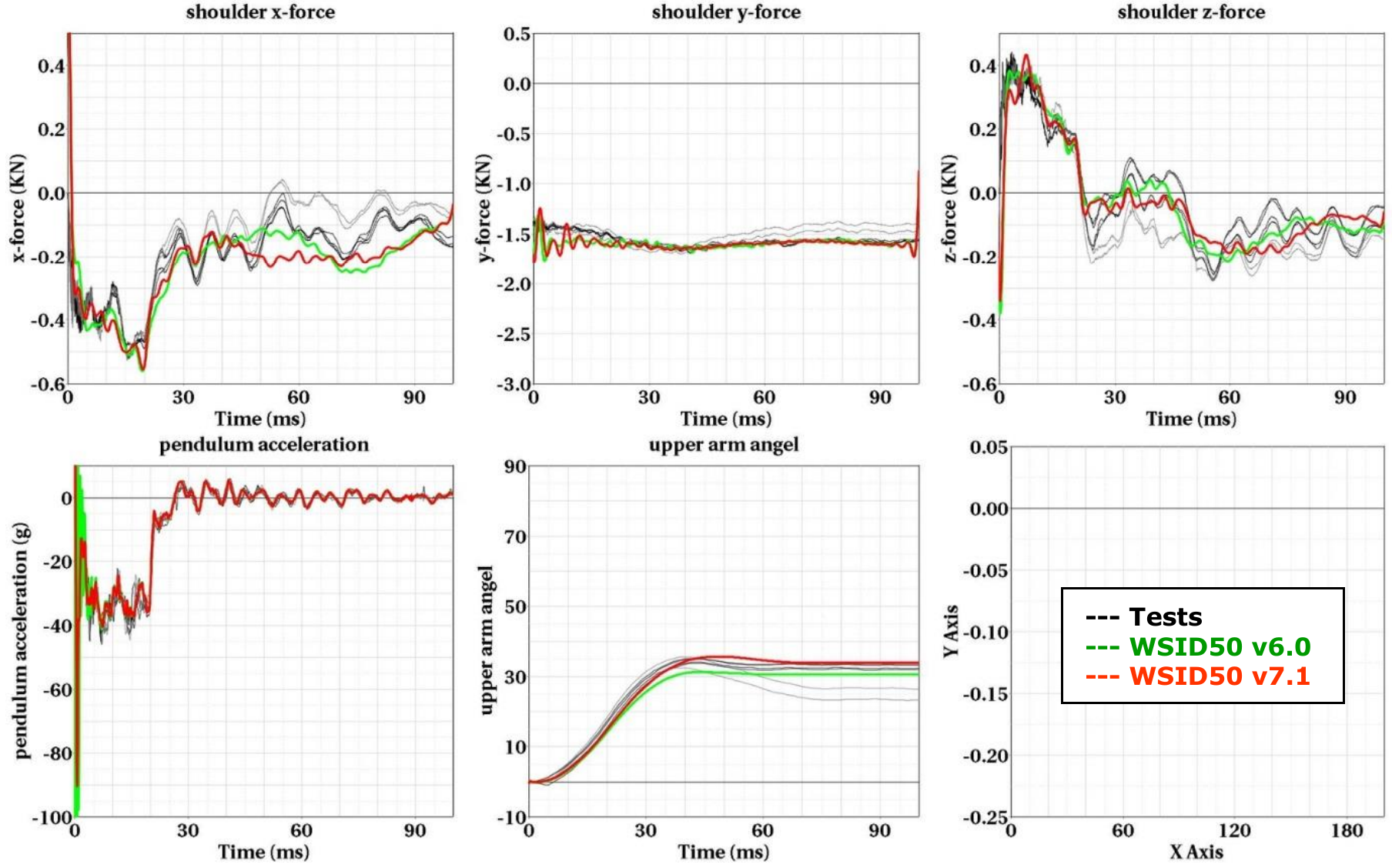

Results - low additional force, high velocity

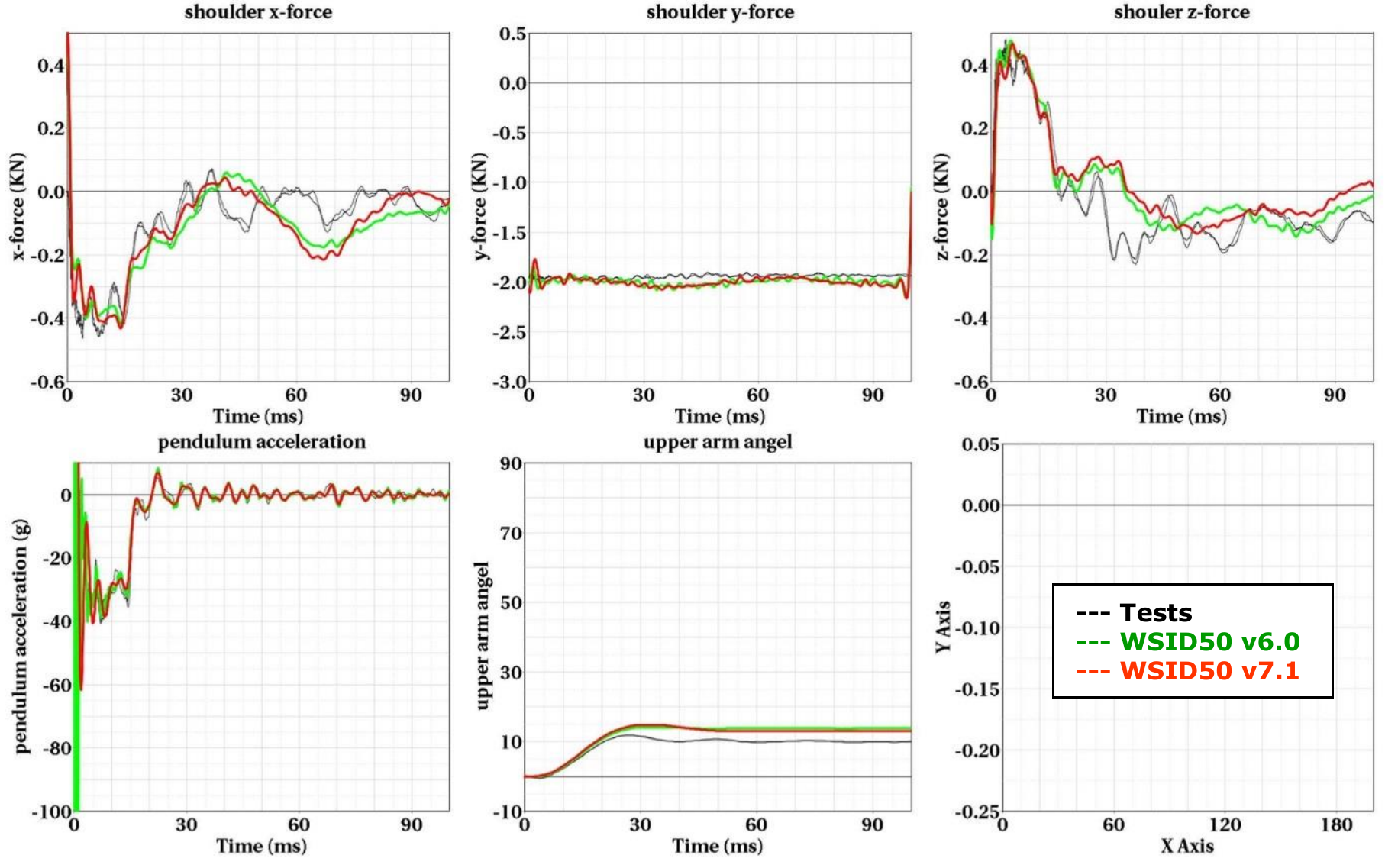

Results - medium additional force, low velocity

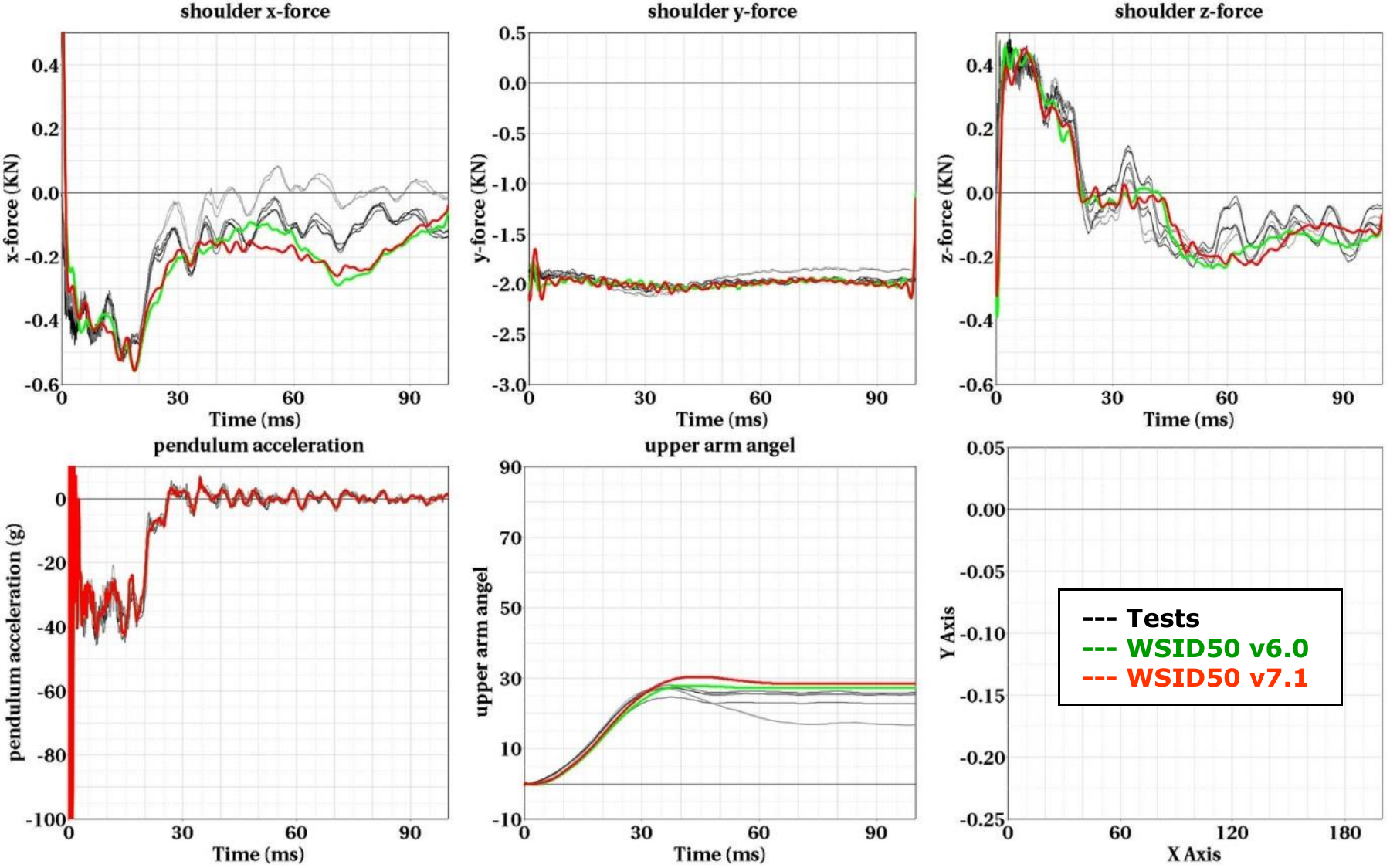

Results - medium additional force, high velocity

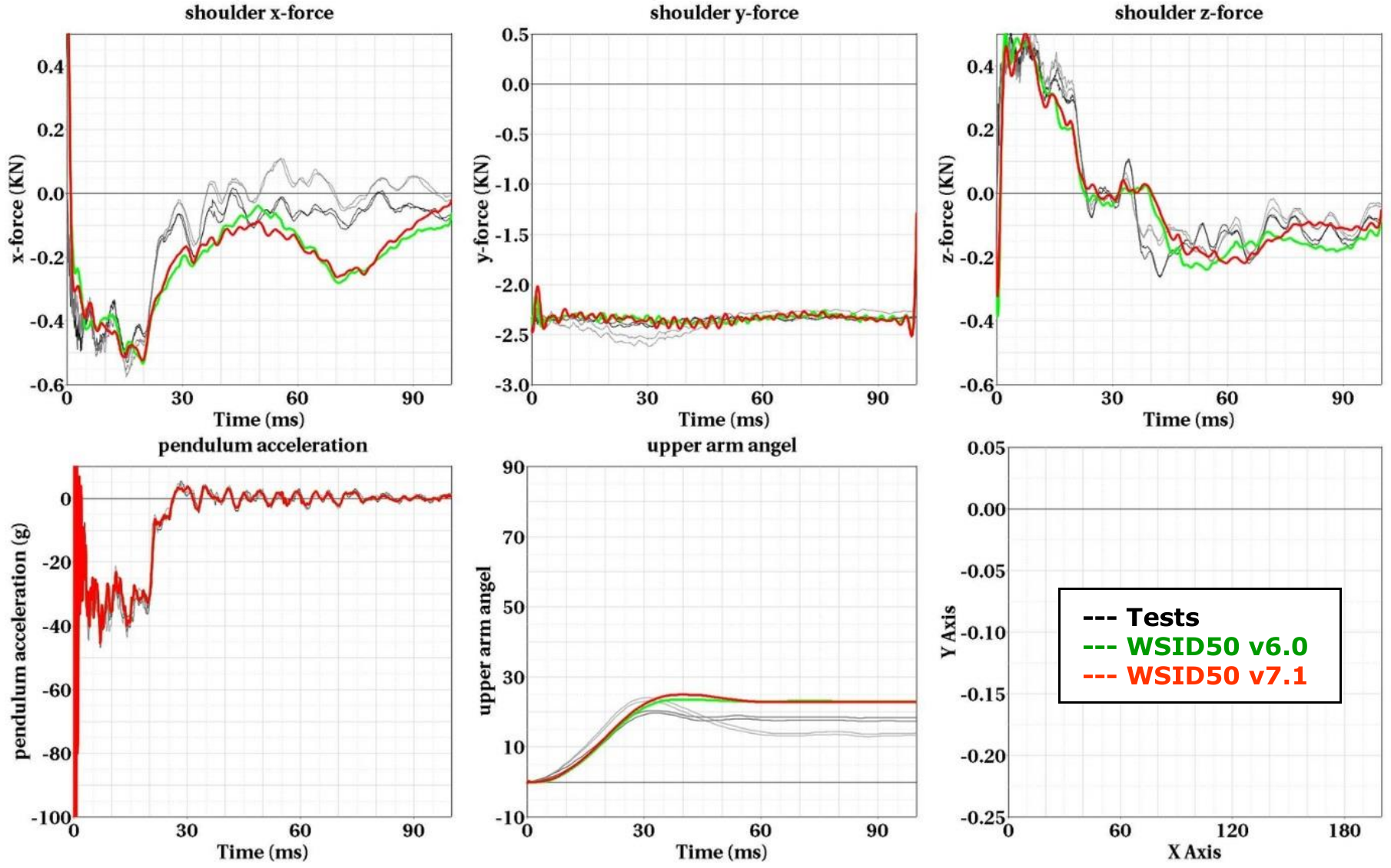

Results - high additional force, high velocity
