Iliac Wing Tests

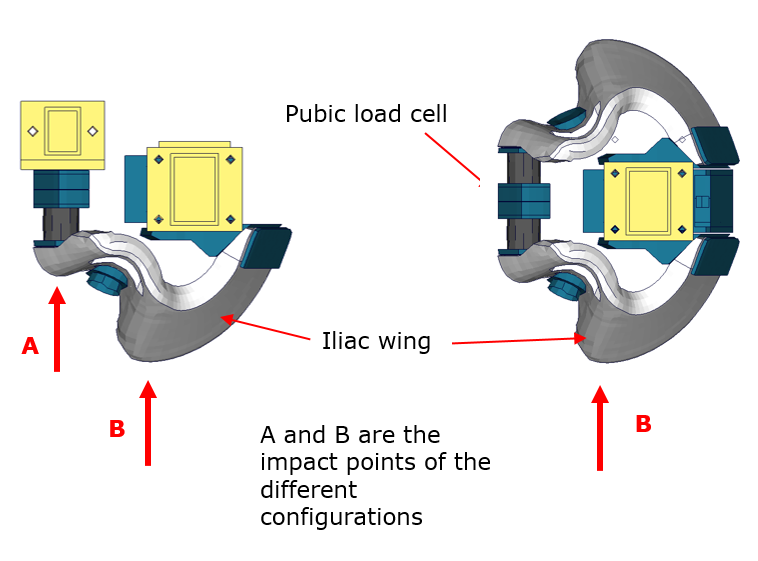

The iliac wings are tested in three different configurations with the use of two different velocities. Here, the sacrum block with mounted iliac wings and pubic load cell is fixed on a table. The first two configurations use only one iliac wing and the half pubic construction. The third configuration is a load on the complete assembled pelvis area without the pelvis foam. The different configurations are depicted in the following figures.
Iliac wing component test configurations
| Test | Target Point | Test Setup | Velocities |
|---|---|---|---|
| 1 | A | Half Pelvis | Low and high velocity |
| 2 | B | Half Pelvis | Low and high velocity |
| 3 | B | Full Pelvis | Low and high velocity |
Results of target point A, low velocity, half pelvis:
Results of target point A, high velocity, half pelvis:
Results of target point B, low velocity, half pelvis:
Results of target point B, high velocity, half pelvis:
Results of target point B, low velocity, full pelvis:

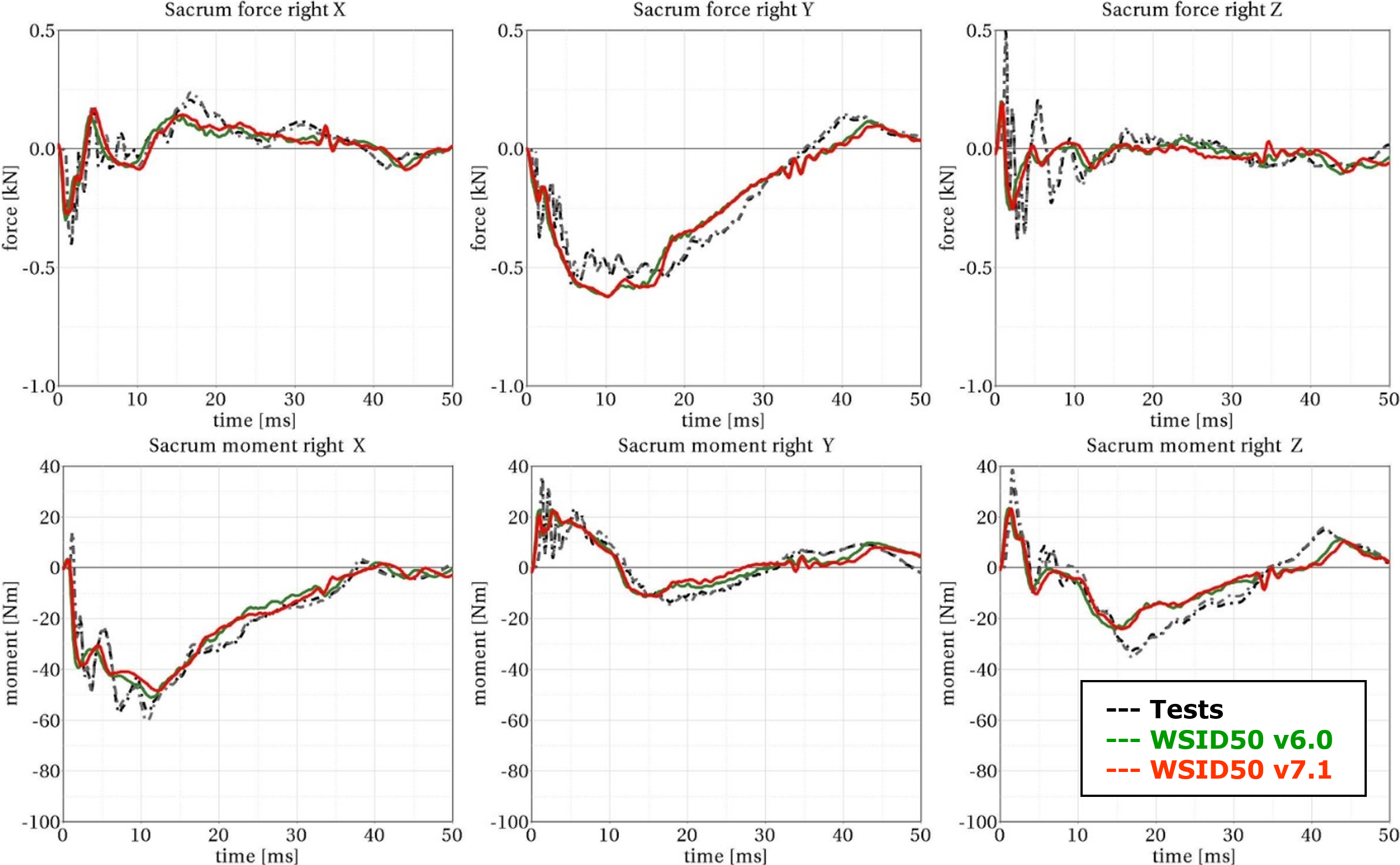

Results of target point B, high velocity, full pelvis:
